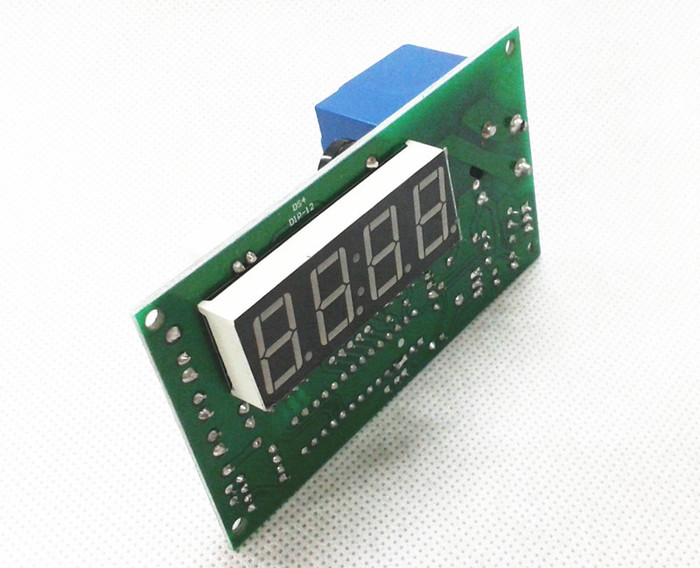

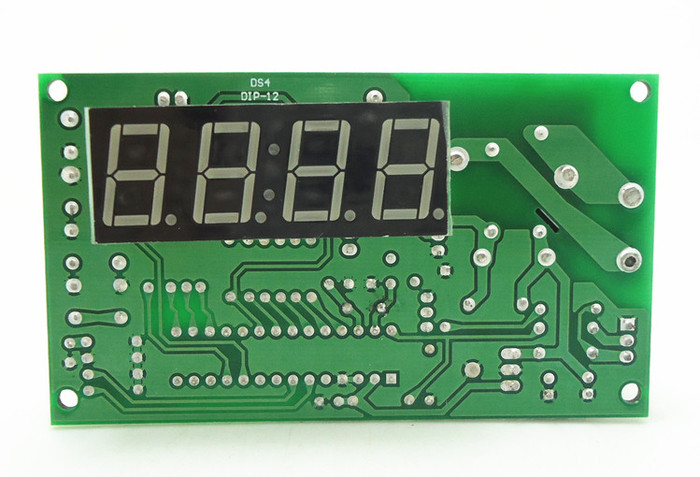

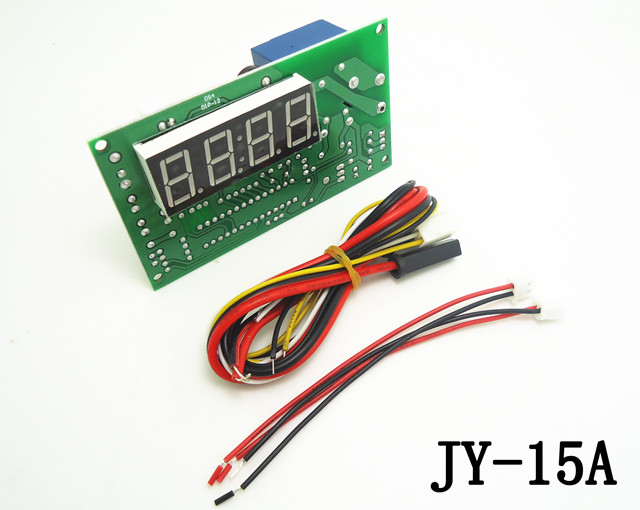

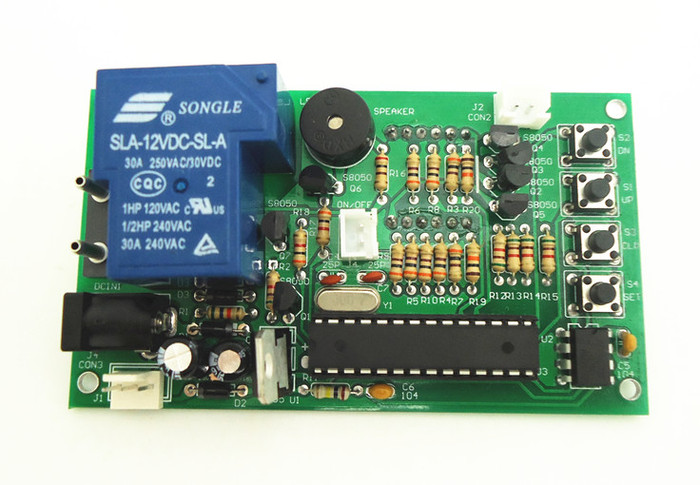

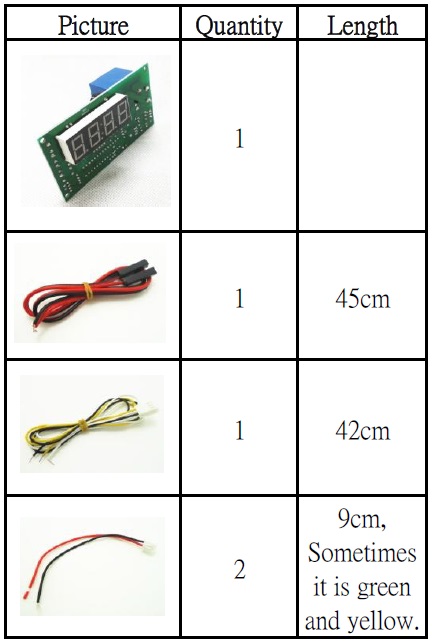

4 digits Time Control Timer Board Power Supply for coin acceptor selector
Collect
|
Detail



ØFree to set up time, value, given time, time for warning sound, and coin and memory mode.

ØAC 1250W  DC 500Watt  electrical relay capacity.

ØControls electrical devices ( TV, Massage chair..) power.

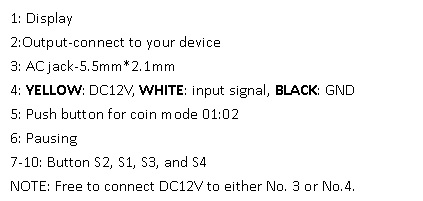

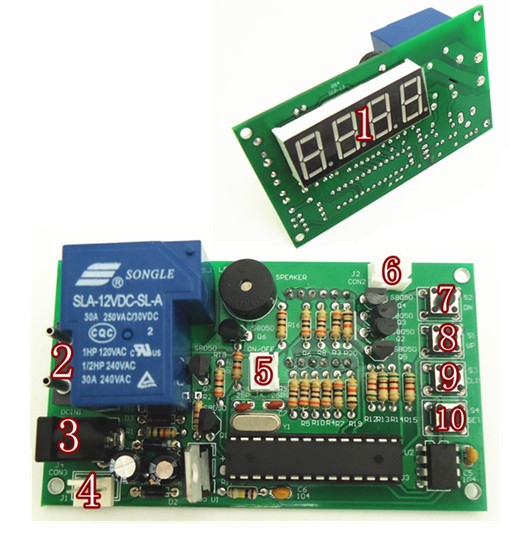

Connection and Position



                                                                 Time Setting

If the function of GIVEN TIME is not needed, please skip step 4-step 6 by press button S4.

1 Please press button "S4", and then please use button "S1" and button "S2" to set up VALUE.

2 Please press button "S4", and then use button "S1" and "S2" to set up TIME for FIRST 2 NUMBER (00:--)

3 Please press button "S4", and then use button "S1" and "S2" to set up TIME for LAST 2 NUMBER (--:00)

4 Please press button "S4", and then use button "S1" and "S2" to set up VALUE OF GIVEN TIME.

5 Please press button "S4". Use button "S1" and "S2" to set up GIVEN TIME for FIRST 2 NUMBER (00:--)

6 Please press button "S4". Use button "S1" and "S2" to set up GIVEN TIME for LAST 2 NUMBER. (--:00)

7 Please press button "S4". Use button "S1" and "S2" to set up TIME for WARNING SOUND
Default is 30 seconds.







Mode Setting

1 Please hold on button "S1" and "S2" to get into MODE SETTING.

2 Please use button "S1" and button "S2" to set up CODE for FIRST MODE.

3 Please press button "S4" after setting.

4 Please repeat step 2 and step 3 for setting rest mode.

Code Introduction

Operating Mode

01:01:Time counts down without pressing button

01:02:Time counts down by pressing button

TIME TYPE

02:03:MINUTE: SECOND

02:04:HOUR: MINUTE

----------------------------------------------------------------------------------------------------------------------------

MEMORY MODE

03:05:Continue counting time after power off and on

03:06:Reset time and value after power off and on

TIME for RESET AUTOMATICALLY

04:??:1-30 minutes are adjustable.

Description: Time and value will be reset automatically if user does not choose any function after the
          user inserts coins.

-----------------------------------------------------------------------------------------------------------------------------

DEFAULT

Operating Mode: 01:01        Time Type: 02:03         Memory Mode: 03:06

TIME for RESET AUTOMATICALLY: non-functioned
