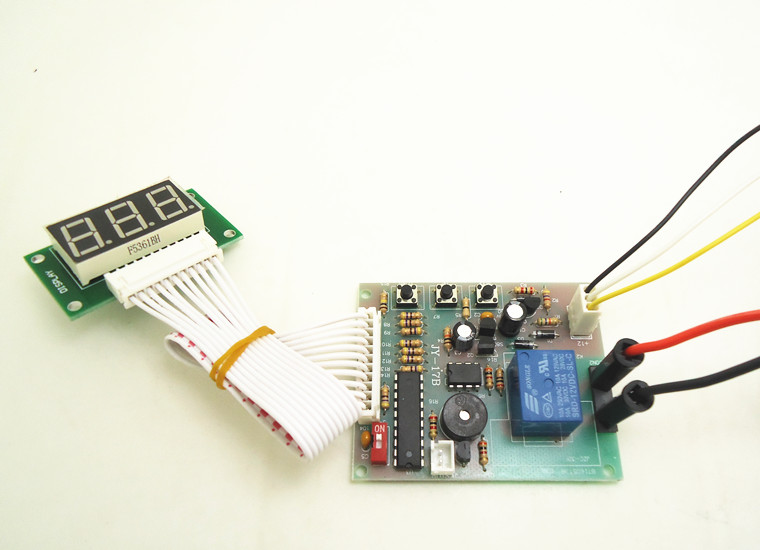

3 digits Time Control Timer Board Power Supply for coin acceptor selector
Collect
|
Detail




ØTime Type: HOUR:MINUTE or MINUTE:SECOND

ØMaximum Time: 9 : 59

ØIf power goes off, this timer will continue counting rest time after power goes on.

ØFree to pause and set up TIME and VALUE

ØWarning sound for last 30 seconds.

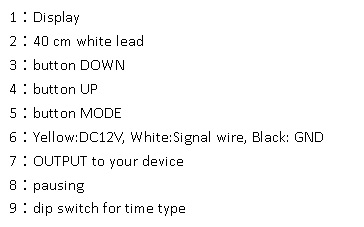

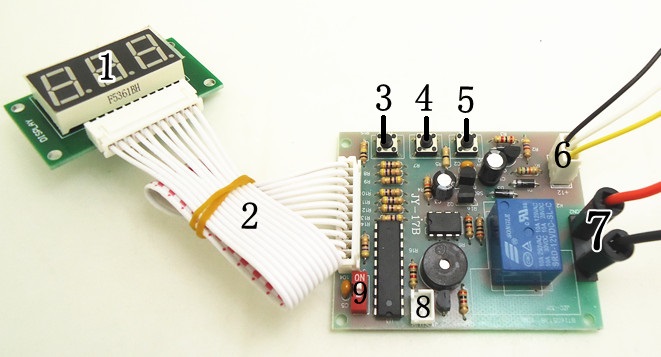

Connection

时间设定

1 Please adjust TIME TYPE by dip switch(9).
ON: HOUR:MINUTE      OPPOSITE: MINUTE:SECOND
The default is MINUTE:SECOND.

2 Please press button MODE,and then please use button UP and button DOWN to set up VALUE.

3 Please press button MODE, and then please use button UP and button DOWN to set up HOUR.

4 Please press button MODE, and then use button UP and button DOWN to set up MINUTE.

5 It will work after finishing the setup.
