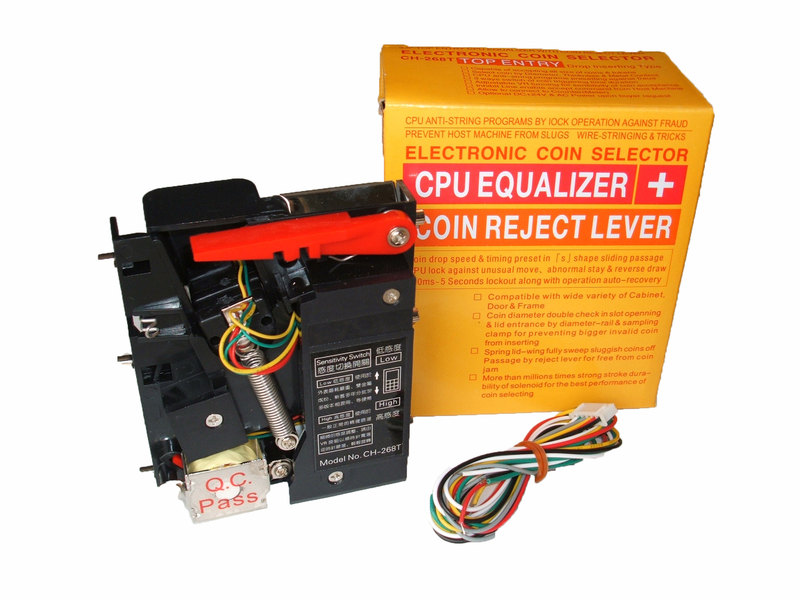

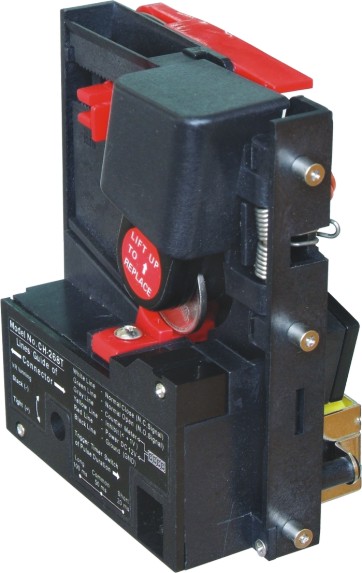

CH268 Top entry coin accptor coin selector
Collect
|
Detail


ØFree to use token or coin

ØVoltage: DC+12V

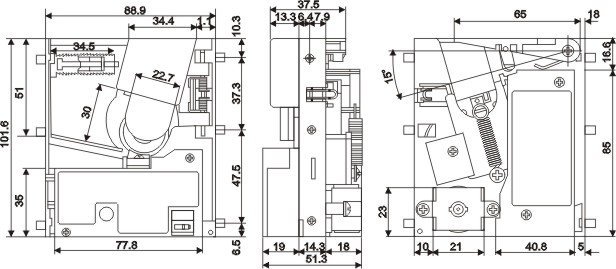

Coin Diameter: 18mm~31mm
Coin Thickness: 1.2mm-2.4mm

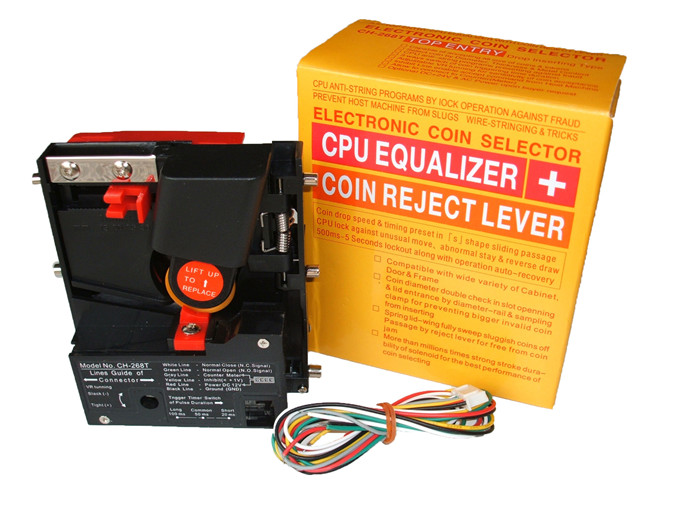

Connection Introduction

Use Guide

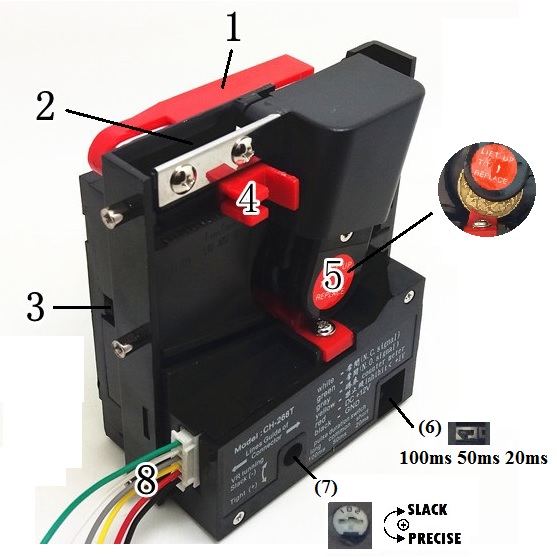

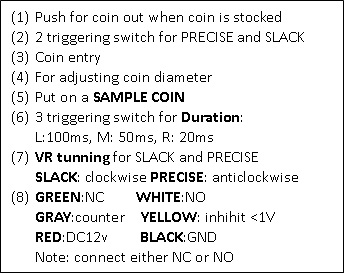

1 Connect wires based on NO.8: - Connect either GREEN-NC or WHITE-NO
                        - GRAY-COUNTER and YELLOW
                        -INHIHIT is not a necessary for using.

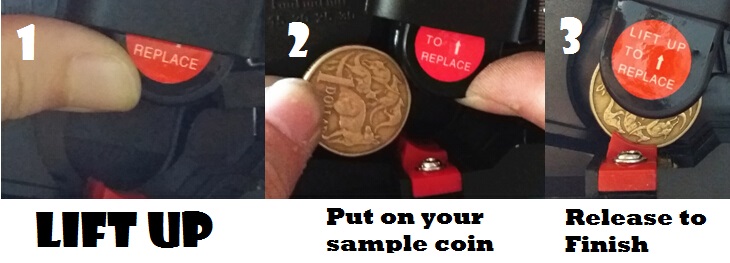

2 Put on a sample coin on No.5:

3 Free to adjust NO.3, NO.4, NO.6, and NO.7 based on your coins and use it.
